cryogenic Nitrogen
Mid-Range Cryogenic Nitrogen Generator for Laboratory
Reduce dependence on external liquid nitrogen deliveries with reliable on site production for laboratory operations, and contact IMTEK Cryogenics to find the right solution for your facility.
Reliable Liquid Nitrogen Generators for Research Labs & IVF Clinics
The CNLab Mid Range Series is designed for laboratories and IVF clinics that require a dependable source of liquid nitrogen. It supports continuous on site LN2 production, helping reduce dependency on external liquid nitrogen supply. With a compact footprint, the system fits easily into laboratory environments while delivering high purity nitrogen output. Stable cryogenic performance supports sensitive applications, and on site production can help lower operational costs. This makes it a practical liquid nitrogen generator research laboratory solution for demanding environments.
SPECIFICATIONS
Advanced Performance, Ready for Innovation
Liquid Nitrogen Generator

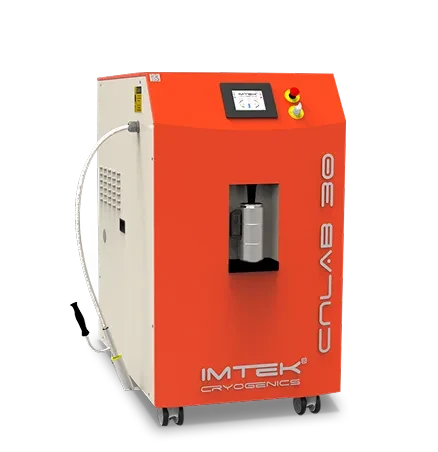

Cryogenic Nitrogen Labstation - CNLAB 30
Air Cooled / Water Cooled
Production Rate
>30 liters/day
Purity
≥99.5 %
Storage Capacity
Standard Configuration: 60 L
Higher Capacity Storage Options: 60L+ optional
Power Consumption
5.6 kW @50Hz
6.6 kW @60Hz
Operating Pressure
1–1.5 bar
Cooling Water Flow Rate
4–9 L/min
Compressed Air Requirement
> 2 m³/hour @7 bar
Electrical Rating
380–415 V (±10%) V3~
Reccomended Circuit Breaker
25 A, C-Type
Noise Level
≤65 dBA
Dimensions (W x L x H)
765mm (W) X 1100 mm(L) X 1090 mm (H)
Weight
400 Kg
Application Areas
- Pharmaceutical research laboratories
- Freeze drying systems
- Scientific cryogenic testing
- Low-temperature laboratory processes
- Controlled LN2 circulation systems
- Research and development facilities
- Cryogenic sample transport systems
- Laser & optics laboratory cooling
- Quantum computing research
- Astrophysics cooling systems
- Cryobiology laboratories
- Advanced scientific research
Liquid Nitrogen Generator

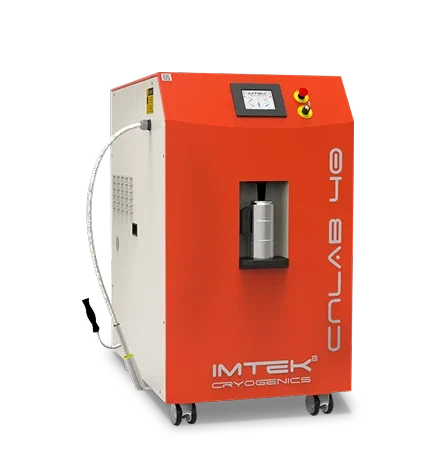

Cryogenic Nitrogen Labstation - CNLAB 40
Air Cooled / Water Cooled
Production Rate
≥40 liters/day
Purity
≥99.5 %
Storage Capacity
Standard Configuration: 80 L
Higher Capacity Storage Options: 80L+ optional
Power Consumption
5.5 kW @50Hz
6.5 kW @60Hz
Operating Pressure
1–1.5 bar
Cooling Water Flow Rate
4–9 L/min
Compressed Air Requirement
> 3 m³/hour @7 bar
Electrical Rating
380–415 V (±10%) V3~
Reccomended Circuit Breaker
25 A, C-Type
Noise Level
≤65 dBA
Dimensions (W x L x H)
870 mm (W) X 1650 mm(L) X 1385 mm (H)
Weight
415 Kg
Application Areas
- Semiconductor research facilities
- Wafer cooling systems
- Quantum computing research facilities
- Quantum technology laboratories
- Quantum computing research facilities
- Vacuum chamber cooling
- Advanced cryogenic testing systems
- Astrophysics research laboratories
- Laser & optics research systems
- Infrared detector cooling
- Superconducting systems
- Industrial research laboratories
- Advanced scientific cooling systems
Liquid Nitrogen Generator

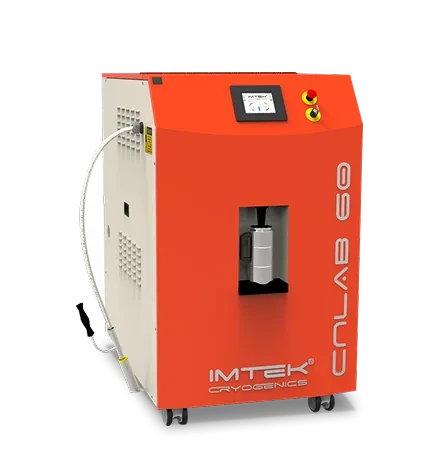

Cryogenic Nitrogen Labstation - CNLAB 60
Water Cooled
Production Rate
>60 liters/day
Purity
≥99.5 %
Storage Capacity
Standard Configuration: 120 L
Higher Capacity Storage Options: 120L+ optional
Power Consumption
6.6 kW @50Hz
6.9 kW @60Hz
Operating Pressure
1–1.5 bar
Cooling Water Flow Rate
6–9 L/min
Compressed Air Requirement
> 8 m³/hour @7 bar
Electrical Rating
380–415 V (±10%) V3~
Reccomended Circuit Breaker
32 A, C-Type
Noise Level
≤65 dBA
Dimensions (W x L x H)
825 mm (W) X 1400 mm (L) X 1385 mm (H)
Weight
417 Kg
Application Areas
- Food freezing systems
- Industrial laboratory applications
- Medium-scale cryogenic transfer
- Industrial gas handling
- Continuous cooling systems
- Cryogenic production processes
- Advanced manufacturing cooling
- Cryogenic machining support systems
- Pharmaceutical production support
- Biotechnology processing systems
Liquid Nitrogen Generator

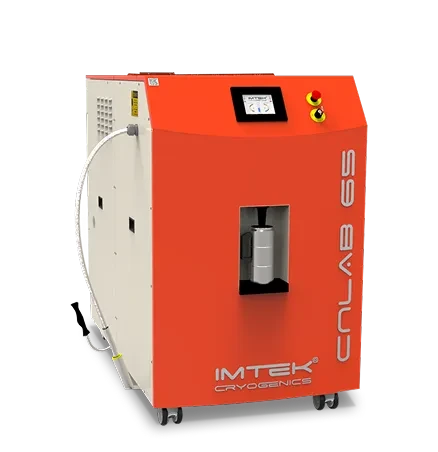

Cryogenic Nitrogen Labstation - CNLAB 65
Water Cooled
Production Rate
>65 liters/day
Purity
≥99.5 %
Storage Capacity
Standard Configuration: 210 L
Power Consumption
6.6 kW @50Hz
6.9 kW @60Hz
Operating Pressure
1–1.5 bar
Cooling Water Flow Rate
6–9 L/min
Compressed Air Requirement
> 8 m³/hour @7 bar
Electrical Rating
380–415 V (±10%) V3~
Reccomended Circuit Breaker
32 A, C-Type
Noise Level
≤65 dBA
Dimensions (W x L x H)
870 mm (W) X 1600 mm (L) X 1385 mm (H)
Weight
460 Kg
Liquid Nitrogen Generator
Cryogenic Nitrogen Labstation - CNLAB 65
External Air Compressor
Production Rate
≥65 liters/day
Purity
≥99 %
Storage Capacity
Standard Configuration: 160 L
Higher Capacity Storage Options: 210 L
Power Consumption
7.2 kW @50Hz
8.1 kW @60Hz
Operating Pressure
1.9 bar
Cooling Water Flow Rate
External Air-Compressor – 8m3/hr
Compressed Air Requirement
Built-in Air Compressor
Electrical Rating
380-415 V (±10%) @50Hz V3~
480 V (±10%) @60Hz V3~
Reccomended Circuit Breaker
32 A, C-Type
Noise Level
≤65 dBA
Dimensions (W x L x H)
870 x 1667 x 1380 mm
Weight
350 Kg
Application Areas
- Continuous industrial cryogenic systems
- Industrial gas transfer systems
- Automated cryogenic processes
- Medium-scale storage transfer
- Process engineering applications
- Industrial cryogenic infrastructure
- Continuous laboratory cooling systems
- Food processing systems
- Pharmaceutical manufacturing support
- Biotechnology production facilities
MAKE IT YOURS
Customize Your Cryo-Plant Experience
Our ‘Build Your Own’ section is more than a tool—it’s your first step towards a cryogenic solution that not only meets but exceeds expectations.
With every choice, you’re engineering a future with efficiency, reliability, and innovation converge. Begin your journey to crafting a cryogenic system that is truly yours.

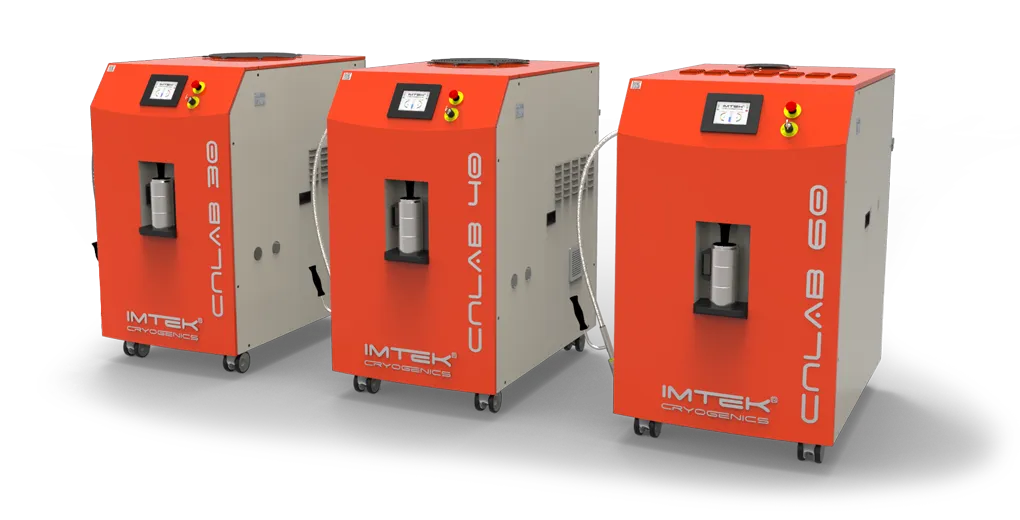

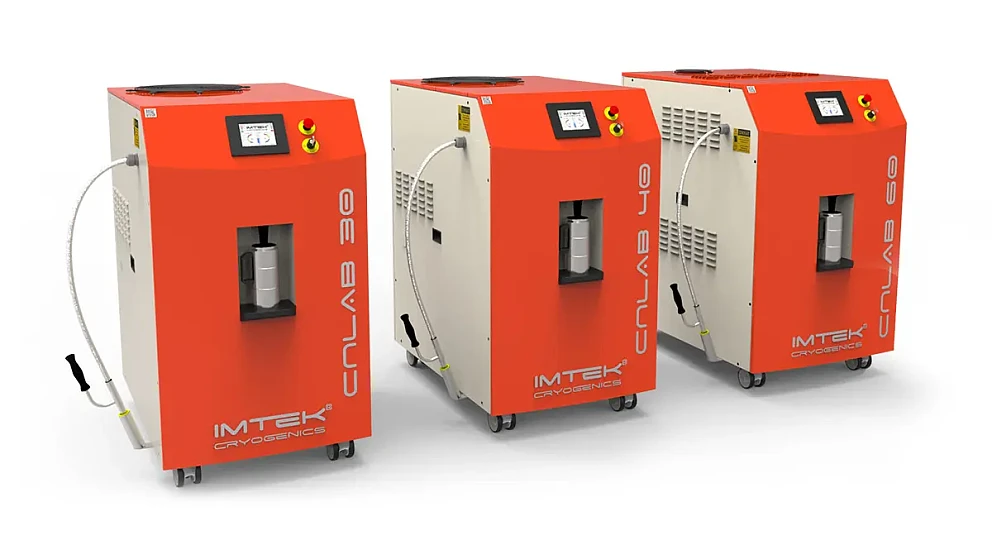

Advantages of the CNLab Mid-Range Liquid Nitrogen Generators
On-Site Liquid Nitrogen Production
The CNLab Series produces liquid nitrogen directly at your facility, helping reduce reliance on external deliveries while supporting daily operations with a dependable liquid nitrogen generator for research lab.
Designed for Research Laboratories
Built for laboratory environments, the CNLab Series offers a practical solution for research activities that require liquid nitrogen for testing, storage, and various cryogenic applications.
High Purity Nitrogen Output
The system produces liquid nitrogen with purity levels of 99% or higher, making it suitable for laboratory processes that require high quality nitrogen output.
Compact & Laboratory-Friendly Design
Its compact footprint allows easy installation within laboratory spaces, helping facilities use available space efficiently while maintaining access to on site liquid nitrogen.
Lower Long-Term Operating Costs
On site liquid nitrogen production can help reduce expenses associated with regular deliveries, offering a cost conscious approach for laboratories with ongoing nitrogen requirements.
Automated Monitoring & PLC Control
The CNLab Series features PLC based monitoring and control functions, helping users oversee system operation and manage production through an automated interface.
Certifications & Industry Memberships
Applications
The CNLab Mid Range Series supports a wide range of cryogenic applications across healthcare, scientific, and research environments. It is a practical liquid nitrogen generator ivf clinic solution for facilities requiring a dependable liquid nitrogen source.
Find the Right Plant for Your Needs
Explore CNP compact liquid nitrogen generators and high-performance cryogenic nitrogen systems engineered for higher liquid nitrogen demand, continuous operation, and reliable on-site production across laboratories, research facilities, healthcare, and industrial environments.
Compact Liquid Nitrogen Generator
Compact cryogenic nitrogen systems designed for on-site LN₂ production with ≥99% purity, energy-efficient operation, and reliable performance for laboratory, medical, and industrial applications.
High-Performance Cryogenic Nitrogen Plants
Engineered for large-scale liquid nitrogen production, these systems deliver high output, advanced automation, and dependable continuous operation for industrial processes, research institutions, and high-demand cryogenic applications.
Our Presence Across the Globe
TURKMENISTAN
NAKHCHIVAN
INDIA
BHUTAN
SAUDI ARABIA
SINGAPORE
VIETNAM
UNITED ARAB EMIRATES
SRI LANKA
SOUTH KOREA
RUSSIA
MOROCCO
BENIN
ANGOLA
SOMALIA
ALGERIA
SENEGAL
ETHIOPIA
COTE DIVORE
CHAD
ROMANIA
FRANCE
SPAIN
POLAND
NETHERLANDS
TURKEY
AUSTRIA
UNITED KINGDOM
USA
BRAZIL
NEW ZELAND
PERU
COLOMBIA
SAVINGS CALCULATOR
Intelligent Automation at Your Fingertips
Monitor and manage system performance through PLC based controls and remote monitoring features, supporting convenient operation and oversight for liquid nitrogen generator for ivf applications.
Calculate Now
Spare Parts & Accessories for CNLab Liquid Nitrogen Generators
IMTEK Cryogenics offers key components that support the operation and maintenance of CNLab systems. These accessories help keep your liquid nitrogen generator research laboratory equipment operating effectively.
- Air and gas filters
- Cryogenic valves
- Sensors and monitoring components
- Compressor spare parts
- Cryogenic transfer hoses
Why Choose IMTEK Cryogenics
Specialized Expertise in Cryogenic Systems
- We focus on cryogenic technologies and develop liquid nitrogen generation systems for laboratory, healthcare, research, and industrial applications. Our experience helps us address a wide range of cryogenic requirements.
Reliable Liquid Nitrogen Technology
- We design liquid nitrogen generation systems that support dependable operation. Our solutions help laboratories and facilities maintain access to liquid nitrogen for their daily activities.
Energy-Efficient System Design
- We develop systems that support on site liquid nitrogen production while maintaining practical energy consumption. Our designs help facilities manage operations with greater efficiency and control.
Global Installation & Technical Support
- We serve customers across different regions and offer installation assistance and technical support. Our team helps users operate and maintain their cryogenic systems effectively.
Advanced Automation & Safety Standards
- We incorporate PLC based controls, monitoring functions, and automated features into our systems. These capabilities support operational visibility, controlled performance, and convenient system management.
Compact Systems with High Production Efficiency
- We combine compact system designs with efficient liquid nitrogen production capacities. Our solutions are suitable for facilities that require reliable output within limited installation space.
Frequently Asked Questions
Is the CNLab series suitable for continuous laboratory operations?
Yes. The CNLab Series is designed for on site liquid nitrogen production and includes integrated storage options, helping laboratories maintain a readily available liquid nitrogen supply.
Can the CNLab generators support multiple laboratory applications at the same time?
Yes. The CNLab Series is used across laboratories, healthcare facilities, biotechnology applications, and research environments, supporting a variety of cryogenic applications and operational requirements.
What purity level does the CNLab liquid nitrogen generator provide for laboratory use?
The CNLab Mid Range Series produces liquid nitrogen with a purity level of 99% or higher, making it suitable for many laboratory and research applications.
What installation requirements should laboratories consider before purchasing?
Laboratories should review available installation space, electrical requirements, cooling configuration preferences, and storage capacity options before selecting a suitable CNLab system.
Are air-cooled and water-cooled configurations available?
Yes. The CNLab Mid Range Series is available in both air cooled and water cooled configurations, offering flexibility for different facility requirements and installation conditions.
