CRYOGENIC NITROGEN
Maximize Efficiency, Maximize Production
SPECIFICATIONS
Engineered for supremacy, our high-capacity cryogenic systems set the standard in innovation, offering expansive performance and unrivaled efficiency for industrial applications.

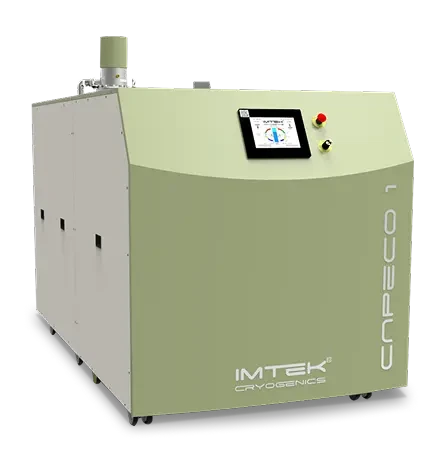

Liquid Nitrogen Generator
Req. External Air Compressor + Water Chiller
Production Rate
≥240 liters/day
Purity
≥99 %
Storage Capacity
Standard Configuration: 250 liters
Higher Capacity Storage Options: 500 liters
Power Consumption
13.2 kW @50Hz
13.8 kW @60Hz
Operating Pressure
1-5 bar
Cooling Water Flow Rate
12-18 L/min.
Compressed Air Requirement
External Compressor ~30m3/hour @7bar
Electrical Rating
380-415 V (±10%) @50Hz V3~
480 V (±10%) @60Hz V3~
Reccomended Circuit Breaker
32 A, C-Type
Noise Level
≤65 dBA
Dimensions (W x L x H)
1240 x 1780 x 1440 mm
Weight
750 kg

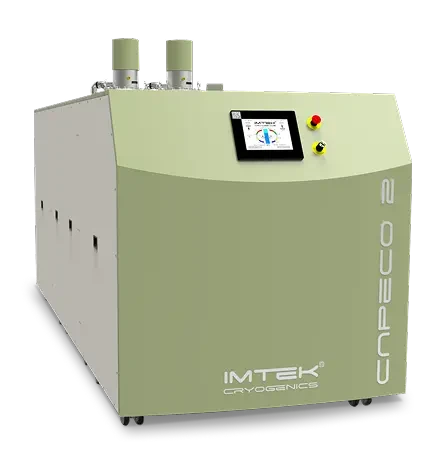

Liquid Nitrogen Generator
Req. External Air Compressor + Water Chiller
Production Rate
≥480 liters/day
Purity
≥99 %
Storage Capacity
Standard Configuration: 500 liters
Higher Capacity Storage Options: 1000 liters
Power Consumption
26.4 kW @50Hz
27.6 kW @60Hz
Operating Pressure
1-5 bar
Cooling Water Flow Rate
24-36 L/min.
Compressed Air Requirement
External Compressor ~60m3/hour @7bar
Electrical Rating
380-415 V (±10%) @50Hz V3~
480 V (±10%) @60Hz V3~
Reccomended Circuit Breaker
64 A, C-Type
Noise Level
≤65 dBA
Dimensions (W x L x H)
1240x3300x1440 mm
Weight
1000 kg

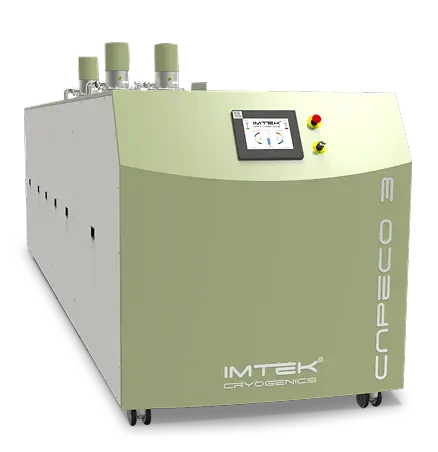

Liquid Nitrogen Generator
Req. External Air Compressor + Water Chiller
Production Rate
≥720 liters/day
Purity
≥99 %
Storage Capacity
Standard Configuration: 1000 liters
Higher Capacity Storage Options: 1500 liters
Power Consumption
39.6 kW @50Hz
41.7 kW @60Hz
Operating Pressure
1-5 bar
Cooling Water Flow Rate
36-54 L/min.
Compressed Air Requirement
External Compressor ~90m3/hour @7bar
Electrical Rating
380-415 V (±10%) @50Hz V3~
480 V (±10%) @60Hz V3~
Reccomended Circuit Breaker
96 A, C-Type
Noise Level
≤65 dBA
Dimensions (W x L x H)
1240x3600x1440mm
Weight
1300 kg

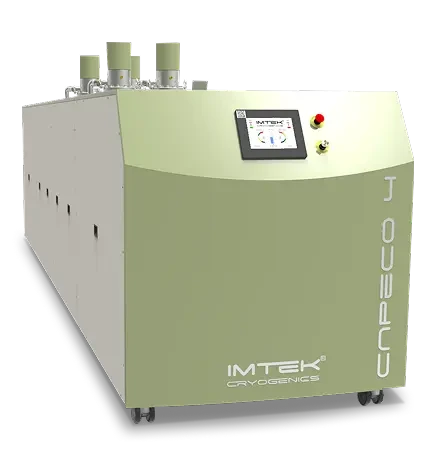

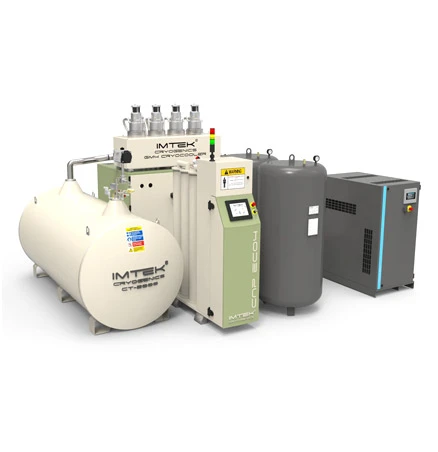

Liquid Nitrogen Generator
Req. Water Chiller
Production Rate
≥960 liters/day
Purity
≥99 %
Storage Capacity
Standard Configuration:
ECO4 Compact : 1000 liters
ECO4 : 2000 liters
Higher Capacity Storage Options
ECO4 Compact : 1500 liters
ECO4 : 3000/4000 liters
Power Consumption
63 kW @50Hz, 67 kW @60Hz without chiller
Operating Pressure
1-5 bar
Cooling Water Flow Rate
4400 L/h
Compressed Air Requirement
External Compressor ~120m3/hour @7bar
Electrical Rating
380-415 V (±10%) @50Hz V3~
480 V (±10%) @60Hz V3~
Reccomended Circuit Breaker
128 A, C-Type
Noise Level
≤65 dBA
Dimensions (W x L x H)
ECO4 Compact : 1240x4500x1440mm
ECO4 : 4300x4300x2100mm
Weight
ECO4 C : 2500 kg / ECO4 : 3600 kg

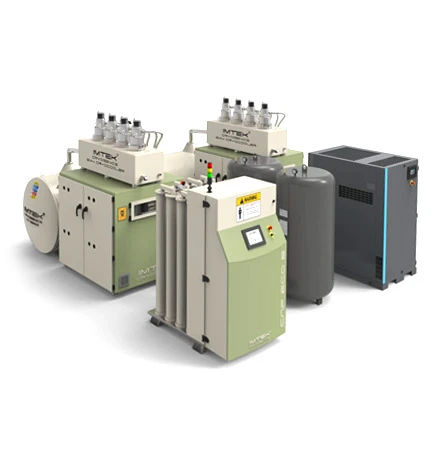

Liquid Nitrogen Generator
Req. Water Chiller
Production Rate
≥ 1920 liters/day (≥80 liters/hour) @ 50 Hz
Purity
≥99 %
Power Consumption
122 kW@ 50Hz / 130 kW@ 60Hz
Operating Pressure
1-5 bar
Water Consumption
8800 L/h @ 2 bar
Dewar Volume
2000/3000/4000 liters
Electrical Rating
380/400/415VAC, 3Ph, 50Hz or 480VAC, 3 Ph, 60 Hz
Noise Level
Low noise level < 65 dB @ 1 meter
Dimensions (W x L x H)
4.3 m (W) x 4.7 m (L) x 2.1 m (H)
Suggested Installation Area (W x L x H)
5.8m (W) x 6.5 m (L) x 3m (H)
Maximum Altitude
4 500 meters
Weight
4520 kg
Liquid Nitrogen Generator
Req. External Air Compressor + Water Chiller
Production Rate
≥120 liters/day
Purity
≥99 %
Storage Capacity
Standard Configuration: 250 liters
Higher Capacity Storage Options: 500 liters
Power Consumption
13.2 kW @50Hz
13.8 kW @60Hz
Operating Pressure
1-5 bar
Cooling Water Flow Rate
12-18 L/min.
Compressed Air Requirement
External Compressor ~15m3/hour @7bar
Electrical Rating
380-415 V (±10%) @50Hz V3~
480 V (±10%) @60Hz V3~
Reccomended Circuit Breaker
32 A, C-Type
Noise Level
≤65 dBA
Dimensions (W x L x H)
1240x1780x1380 mm
Weight
500 kg
